Additional information
| NTT product code | BREU55K |
|---|---|
| Tsubaki article no. | 90000005475 |
| Standard packaging | P |
| Mass [kg/m] | 8,9 |

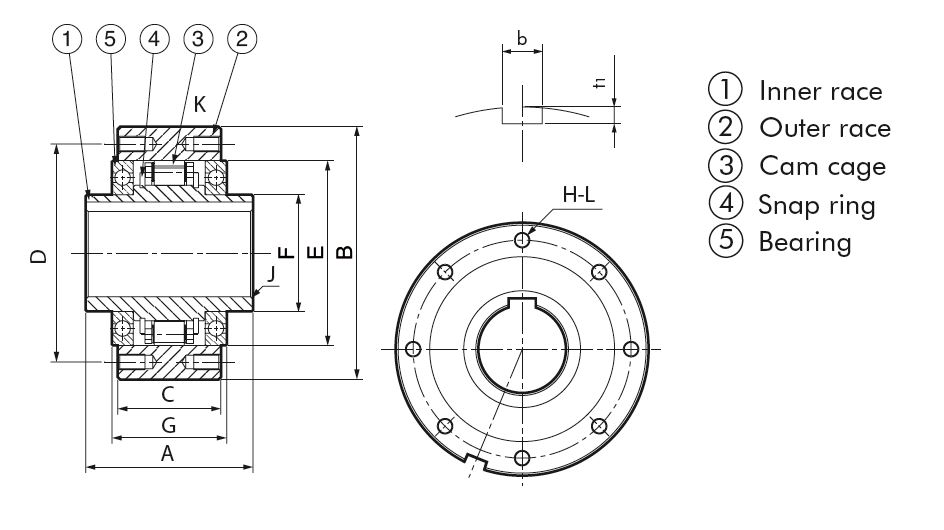

| Bore size h7 mm | 55 |
| Dimension a mm | 104 |
| Dimension b h7 mm | 160 |
| Dimension c mm | 66 |
| Dimension d mm | 138 |
| Dimension e mm | 115 |
| Dimension f mm | 75 |
| Dimension g mm | 72 |
| Dimension h l mm | 8 – M10 |
| Dimension j mm | 1,5 |
| Dimension k mm | 16 |
| Inner race keyway | 16 x 4,3 |
| Inner Race Overrunning Min RPM | 580 |
| Max engagement speed rpm | 220 |
| Max Overrunning Speed Inner RPM | 3600 |
| Outer race keyway b p10 | 16 x 6,0 |
| Outer race keyway t1 | 16 x 6,0 |
| Torque capacity nm | 1960 |
