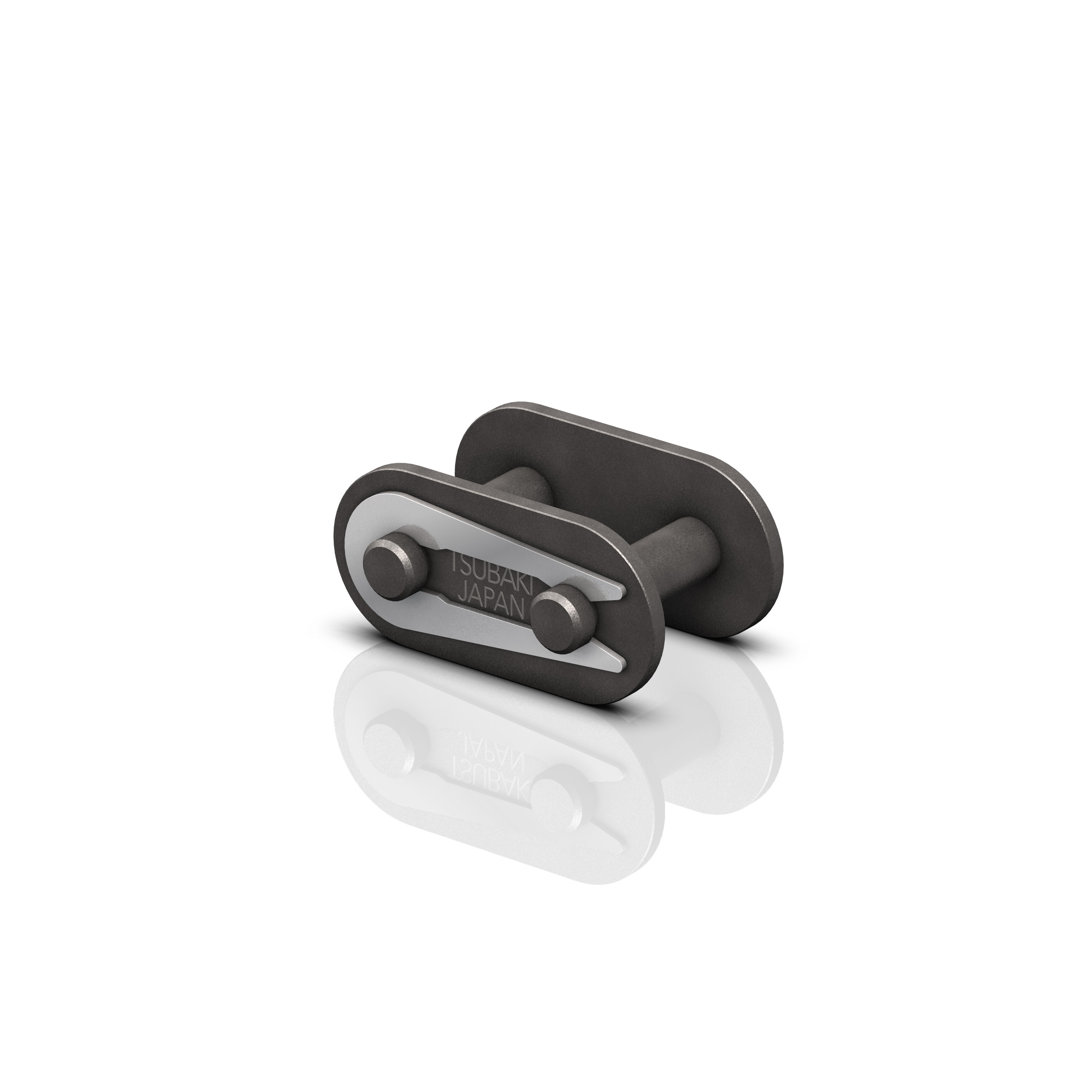

Roller chain Tsubaki RF16B CL (SC) - BS Single Pitch Standard RF (Connecting Link - spring clip type) Roller chain Tsubaki RF16B CL (SC) - BS Single Pitch Standard RF (Connecting Link - spring clip type)
Roller chain Tsubaki RF16B - BS Single Pitch Standard RF - Image 1
Roller chain Tsubaki RF16B - BS Single Pitch Standard RF - Image 2
Click to enlarge

Roller chain Tsubaki RF16B – BS Single Pitch Standard RF

Tsubaki RF16B (BS Standard RF) is a BS roller chain with straight (RF) link plates, designed for power transmission applications where the use of straight plates is preferred. Compatible with all standard BS sprockets.

Quality class: Premium

Add to wishlist
Compare
Technical Data

Additional information

NTT product code

RF16B
Tsubaki article no.

2760162005-M5
Standard packaging

5M
Pitch - P [mm]

25,40
Pitch p inch

(1”)
Roller diameter - D1 [mm]

15,88
Inner width - B1 [mm]

17,02
Transverse Pitch (pt)

–
Pin diameter - D2 [mm]

8,28
Connecting pin length - L2 [mm]

19,95
Pin length - L [mm]

17,75
Link plate thickness - T [mm]

3,20
Link plate height - H [mm]

24,00
Mass [kg/m]

0,083
