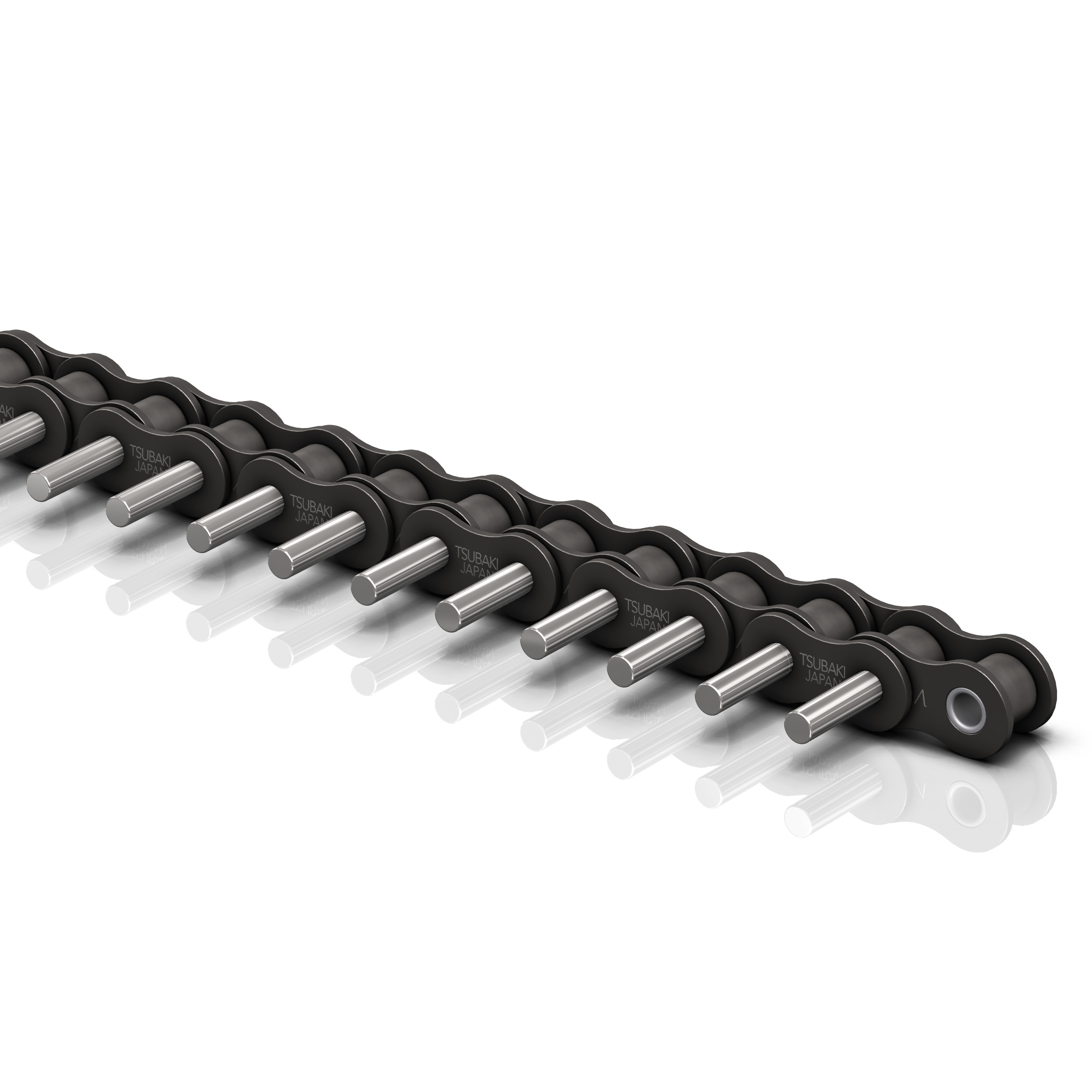

Roller chain Tsubaki RS16B-LM-1 RP 2LD3 - BS Single Pitch Lambda Roller chain Tsubaki RS16B-LM-1 RP 2LD3 - BS Single Pitch Lambda
Next product
Roller chain Tsubaki RS10B X LAMBDA 1 RP - BS X-LAMBDA Chain Roller chain Tsubaki RS10B X LAMBDA 1 RP - BS X-LAMBDA Chain
Roller chain Tsubaki RS12B X LAMBDA 1 RP - BS X-LAMBDA Chain - Image 1
Click to enlarge

Roller chain Tsubaki RS12B X LAMBDA 1 RP – BS X-LAMBDA Chain

Tsubaki RS12B X LAMBDA 1 RP is a premium roller chain manufactured by the Japanese leader in power transmission components. Built to ensure long service life, high fatigue strength and reliable performance in industrial drive and conveyor applications.

Quality class: Premium

Add to wishlist
Compare
Technical Data

Additional information

NTT product code

RS12BXLAMBDA1RP
Tsubaki article no.

4002120005-M5
Standard packaging

5M
Pitch - P [mm]

19,05
Pitch p inch

(3/4”)
Roller diameter - D1 [mm]

12,07
Inner width - B1 [mm]

11,68
Pin diameter - D2 [mm]

5,72
Connecting pin length - L2 [mm]

13,80
Pin length - L [mm]

11,90
Link plate thickness - T [mm]

1,80
Link plate height - H [mm]

16,10
Min. Tensile Strength acc. to ANSI (KN)

28,9
Mass [kg/m]

1,25
