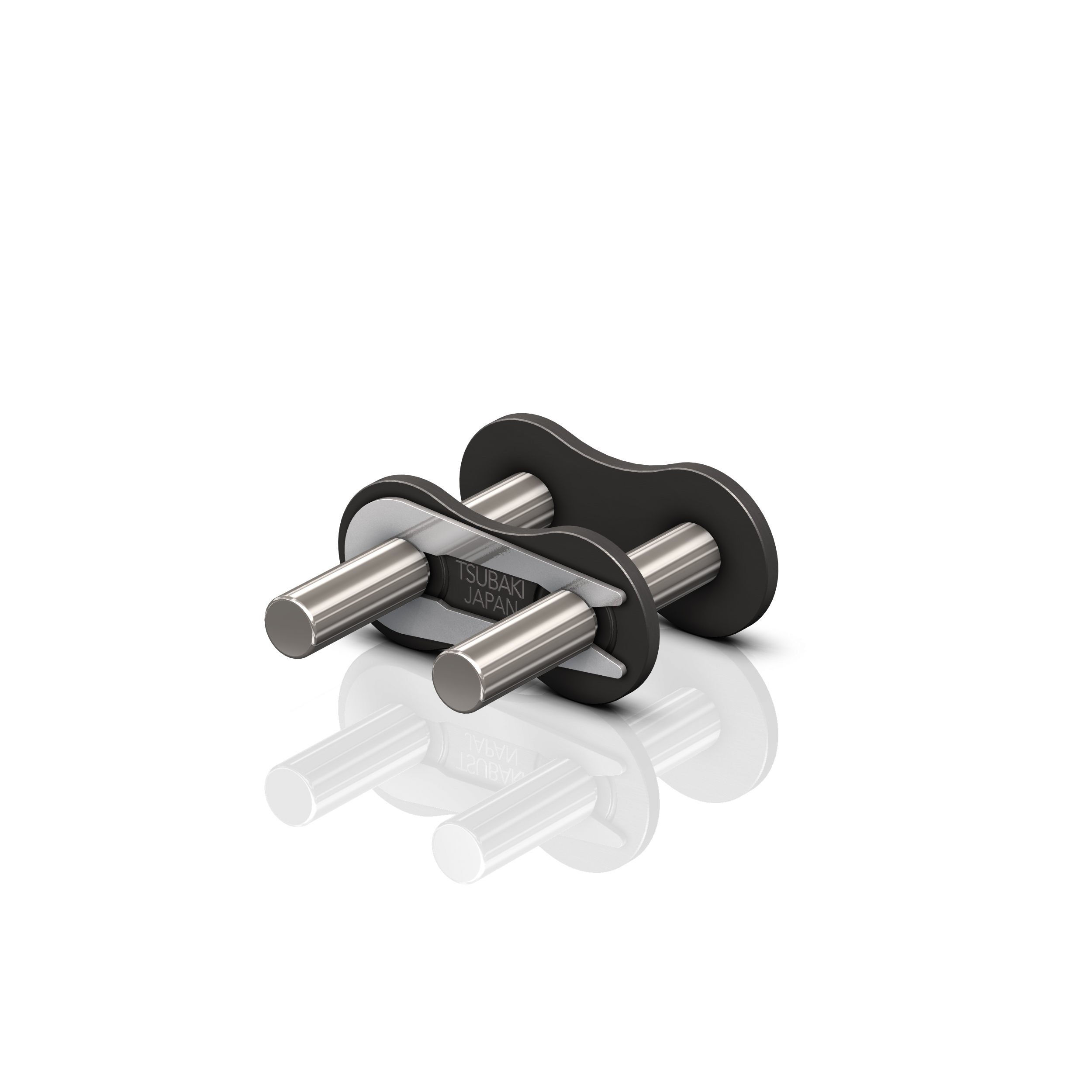

Roller chain Tsubaki RS16B LAMBDA D3 CL (SC) - BS Single Pitch Lambda (Connecting Link - spring clip type) Roller chain Tsubaki RS16B LAMBDA D3 CL (SC) - BS Single Pitch Lambda (Connecting Link - spring clip type)
Next product
Roller chain Tsubaki RF08B 1 RP - BS Single Pitch Standard RF Roller chain Tsubaki RF08B 1 RP - BS Single Pitch Standard RF
Roller chain Tsubaki RS16B X LAMBDA 1 CL (SC) - BS X-LAMBDA Chain (Connecting Link - spring clip type) - Image 1
Click to enlarge

Roller chain Tsubaki RS16B X LAMBDA 1 CL (SC) – BS X-LAMBDA Chain (Connecting Link – spring clip type)

Tsubaki RS16B X LAMBDA 1 CL (SC) is a premium roller chain manufactured by the Japanese leader in power transmission components. Built to ensure long service life, high fatigue strength and reliable performance in industrial drive and conveyor applications.

Quality class: Premium

Add to wishlist
Compare
Technical Data

Additional information

NTT product code

RS16BXLAMBDA1CLSC
Tsubaki article no.

4003160002
Standard packaging

P
Pitch - P [mm]

25,40
Pitch p inch

(1”)
Roller diameter - D1 [mm]

15,88
Inner width - B1 [mm]

17,02
Pin diameter - D2 [mm]

8,28
Connecting pin length - L2 [mm]

21,75
Pin length - L [mm]

18,55
Link plate thickness - T [mm]

3,20
Link plate height - H [mm]

21,00
Mass [kg/m]

0,07
