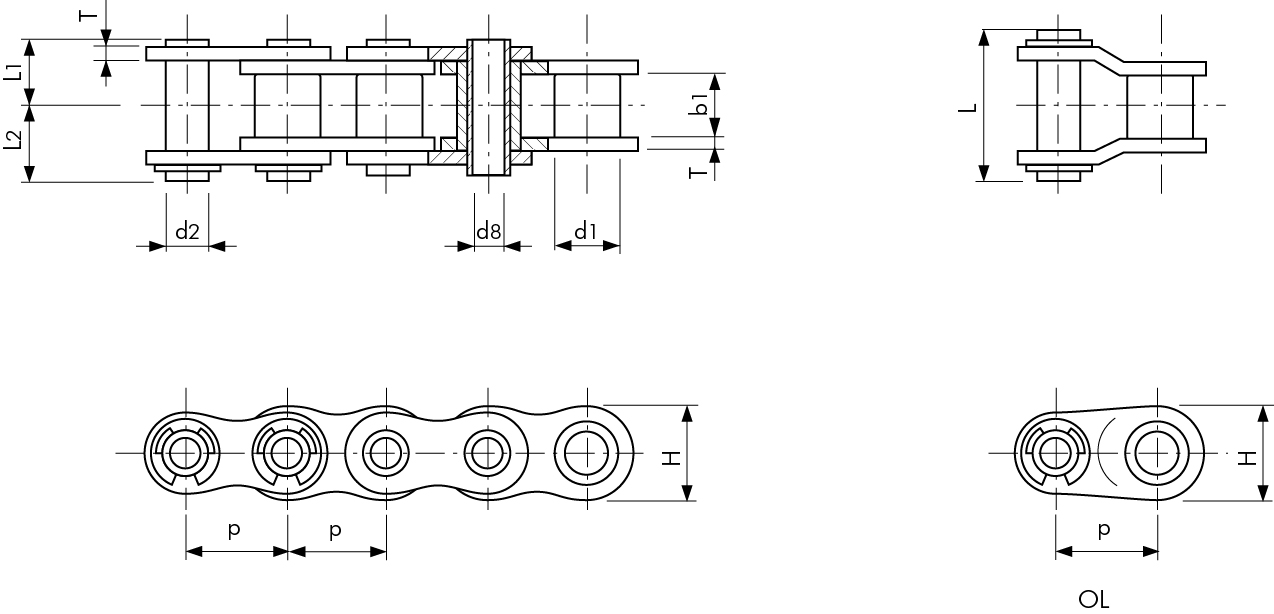

Roller chain Tsubaki RSC40 HP LAMBDA - ANSI Single Pitch LAMBDA Hollow Pin (HP) - Image 2
Click to enlarge

Roller chain Tsubaki RSC40 HP LAMBDA – ANSI Single Pitch LAMBDA Hollow Pin (HP)

Tsubaki RSC40 HP LAMBDA (LAMBDA Hollow Pin) is a self-lubricating ANSI roller chain with hollow pins. Combines maintenance-free operation with the ability to mount accessories — ideal for clean-room and food-processing conveyors.

Quality class: Premium

Add to wishlist
Compare
Technical Data

Additional information

NTT product code

RSC40HPLAMBDA
Tsubaki article no.

2205040010-M3.05
Standard packaging

3.05M
Pitch - P [mm]

12,70
Pitch p inch

(1/2”)
Inner width - B1 [mm]

7,95
Pin diameter - D2 [mm]

5,68
Connecting pin length - L2 [mm]

9,50
Pin length - L [mm]

19,10
Link plate thickness - T [mm]

1,50
Link plate height - H [mm]

12,00
Mass [kg/m]

0,007
Bush diameter d1 mm

7,92
Hollow pin d8 mm

4,00
Attributes
Reviews (0)
About Brand
SKU: RSC40-1-HP-LAMBDA Category: Brand:
PREMIUM JAPANESE QUALITY

Tsubaki Roller Chains

ANSI & BS STANDARDS - PROVEN RELIABILITY

  • ANSI G8 Series: Heat-treated link plates exceed ANSI requirements for superior fatigue strength and durability.
  • LAMBDA Chains: Self-lubricating chains for maintenance-free operation in food, pharmaceutical and clean-room applications.
  • NEPTUNE Chains: Special anti-corrosion coating for outdoor and humid environments.
Available in single, double and triple strand configurations across all ANSI and BS sizes.
